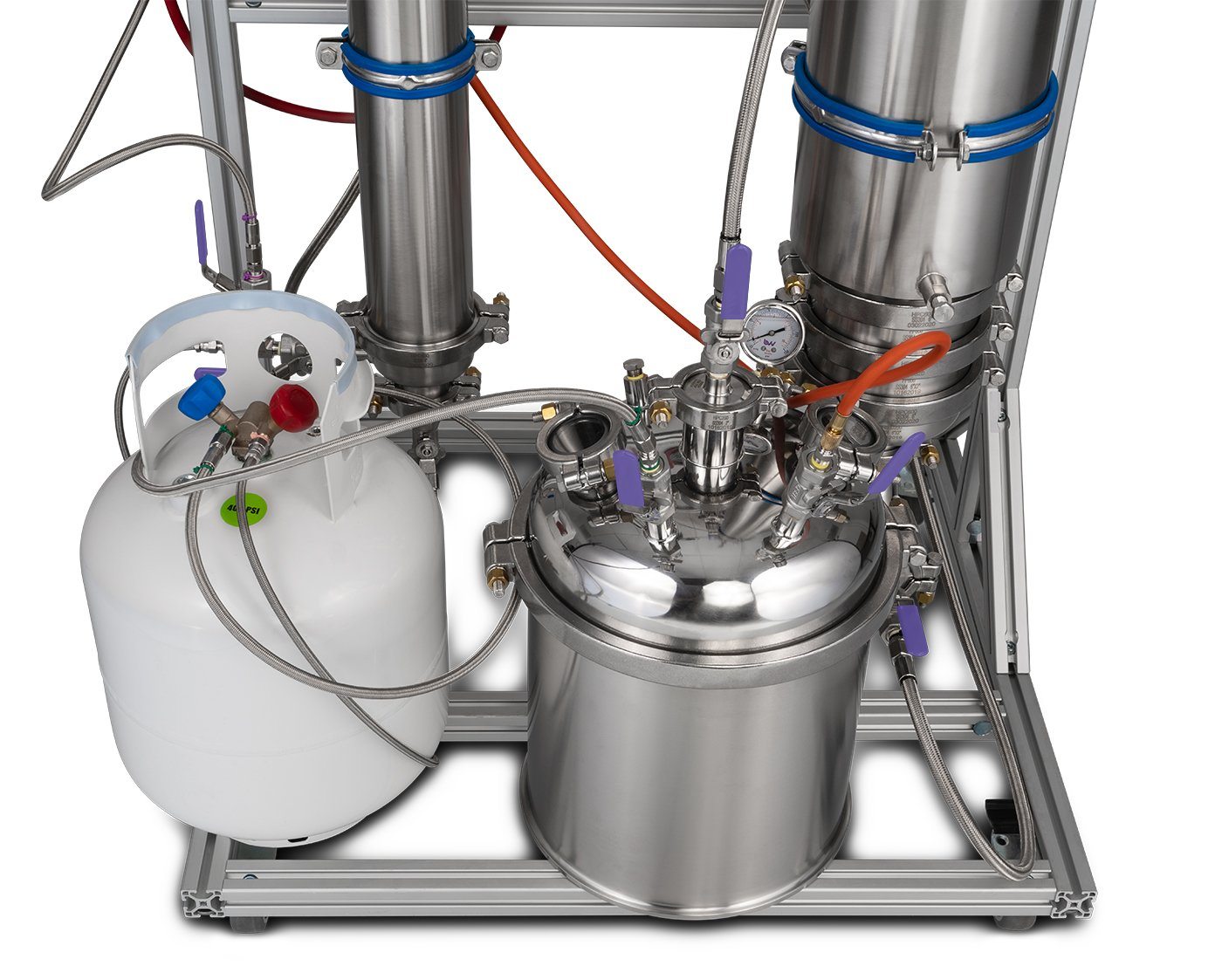

Icarus Unit - 5lb True Dewax
The Icarus unit shares the same function as the standard Bi-directional extractors but features rack mounting for ease of use. It is also the 5lb True Dewax unit. By utilizing an input manifold for the solvent, the user can switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil-bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance. The filtration on the true dewax column has been separated, making it easier to deal with clogs in the event that they occur.
| Parameter | Value |
|---|---|
| Operating Temperature Range | -40C (-40F) to 72C (160F) |
| Ultimate Vacuum | As low as 10 Microns |
| Base Unit Maximum Capacity | 1301 cubic inches, (21.323 Liters) |
| Construction | All components made of 304 & 316 Stainless Steel |
| Intake Fittings | JIC 37 Degree Vacuum Fittings |
| Max Vacuum | -29.9inHg |
| Interior Finish | High Polish |
The Icarus unit, with its rack mounting design, provides ease of use and is the 5lb True Dewax unit. It allows users to switch between bottom flood and top input on the material column, ensuring thorough saturation and rinsing of oils on the first run. The oil-bearing solvent is then chilled with dry ice in a sleeved spool, leading to the coagulation and removal of waxes and lipids. The rack unit comes with a standard port for nitrogen assistance, and the true dewax column's filtration has been separated for easier handling of clogs.
For warranty information, please refer to the manufacturer's official website or contact our customer support team.
